4.6. Benchmarking Risk Model Simulations#
4.6.1. Generate Quantum Risk Models#
We create two sets of quantum risk model circuits—one with lower risk item counts (2 - 6) the other with higher counts (7-13). The quantum risk models are used for benchmarking different quantum simulators—Qiskit AerSimulator, geqo simulatorStatevectorNumpy, and geqo statevectorSimulatorCuPy.
import numpy as np
from itertools import combinations
from geqo.algorithms import RiskModel
def generate_prob_model(n, num_edges=None, node_prefix="N"):
np.random.seed(10)
if n < 1:
raise ValueError("Number of nodes must be at least 1")
# Generate node labels (e.g., N0, N1, ..., or A, B, ...)
if node_prefix.isalpha() and len(node_prefix) == 1:
# Use letters if n <= 26 and prefix is a letter
if n <= 26:
nodes = [chr(ord(node_prefix) + i) for i in range(n)]
else:
nodes = [f"{node_prefix}{i}" for i in range(n)]
else:
nodes = [f"{node_prefix}{i}" for i in range(n)]
# Generate random intrinsic probabilities for each node
probsNodes = {node: np.random.uniform(0, 1) for node in nodes}
# Default number of edges: floor(n/2), or user-specified
if num_edges is None:
num_edges = n - 1 # Integer division for floor(n/2)
num_edges = min(
num_edges, n * (n - 1)
) # Max possible directed edges without self-loops
if num_edges < 0:
raise ValueError("Number of edges cannot be negative")
# Generate random edges
possible_edges = list(
combinations(nodes, 2)
) # All possible directed pairs (A,B), (A,C), ...
np.random.shuffle(possible_edges) # Randomize edge order
selected_edges = possible_edges[:num_edges]
# Generate random transition probabilities for selected edges
probsEdges = {(src, tgt): np.random.uniform(0, 1) for src, tgt in selected_edges}
return probsNodes, probsEdges
# Create risk models with # of items from 2 to 5
instances = []
for n in range(2, 6):
probsNodes, probsEdges = generate_prob_model(n, num_edges=None, node_prefix="N")
instances.append((probsNodes, probsEdges))
seq_cv = []
for node_probs, edge_probs in instances:
seq, cv = RiskModel(node_probs=node_probs, edge_probs=edge_probs)
seq_cv.append((seq, cv))
# Create risk models with # of items from 6 to 13
instances = []
instances2 = []
for n in range(6, 14):
probsNodes, probsEdges = generate_prob_model(n, num_edges=None, node_prefix="N")
instances2.append((probsNodes, probsEdges))
seq_cv2 = []
for node_probs, edge_probs in instances2:
seq, cv = RiskModel(node_probs=node_probs, edge_probs=edge_probs)
seq_cv2.append((seq, cv))
4.6.2. Construct Grover operators based on the quantum risk models#
from geqo.operations import QuantumControl
from geqo.gates import PauliX, PauliZ
from geqo.core import Sequence
from geqo.utils import embedSequences
def grover_op(seq):
n = len(seq.qubits)
seqList = [
(
QuantumControl([1] * (n - 1), PauliZ()),
[f"{i}" for i in range(n)],
[],
), # mark 11111 state
(seq.getInverse(), [f"{i}" for i in range(n)], []), # inverse operator
(PauliX(), ["0"], []), # the global -1
(PauliZ(), ["0"], []),
(PauliX(), ["0"], []),
(PauliZ(), ["0"], []),
(PauliX(), ["0"], []), # Phase -1 on 0000 only, 1 else
(
QuantumControl([0] * (n - 1), PauliZ()),
[f"{i}" for i in range(1, n)] + ["0"],
[],
),
(PauliX(), ["0"], []),
(seq, [f"{i}" for i in range(n)], []), # the operator
]
grov = Sequence(
seq.qubits, seq.bits, seqList
) # Create the Grover operator as Sequence
return embedSequences(grov)
grovs = [grover_op(seq) for seq, _ in seq_cv]
grovs2 = [grover_op(seq) for seq, _ in seq_cv2]
4.6.3. Create different powers of Grover operators#
We need to raise the Grover operators to different powers in the QAE circuit.
# raise Grover operators to different powers and store them in lists
pows = []
for n in range(2, 6):
pow1 = Sequence(
[f"{i}" for i in range(n)], [], [(grovs[n - 2], [f"{i}" for i in range(n)], [])]
)
pows_n = [embedSequences(pow1)]
for _ in range(6):
pow = Sequence(
[f"{i}" for i in range(n)],
[],
[
(pows_n[-1], [f"{i}" for i in range(n)], []),
(pows_n[-1], [f"{i}" for i in range(n)], []),
],
)
pows_n.append(embedSequences(pow))
pows.append(pows_n)
pows2 = []
for n in range(6, 14):
pow1 = Sequence(
[f"{i}" for i in range(n)],
[],
[(grovs2[n - 6], [f"{i}" for i in range(n)], [])],
)
pows_n = [embedSequences(pow1)]
for _ in range(6):
pow = Sequence(
[f"{i}" for i in range(n)],
[],
[
(pows_n[-1], [f"{i}" for i in range(n)], []),
(pows_n[-1], [f"{i}" for i in range(n)], []),
],
)
pows_n.append(embedSequences(pow))
pows2.append(pows_n)
4.6.4. Build QAE circuits#
from geqo.gates import Hadamard
from geqo.operations import Measure
from geqo.algorithms import InverseQFT
# Build QAE circuits
qaes = []
for n in range(2, 6):
qft = InverseQFT(7)
seq = seq_cv[n - 2][0]
pow = pows[n - 2]
gatesAndTargets = []
for i in range(7):
gatesAndTargets.append((Hadamard(), [f"p{i}"], []))
gatesAndTargets.append((seq, [f"{i}" for i in range(n)], []))
for j in reversed(range(7)):
for gnt in pow[j].gatesAndTargets:
if isinstance(gnt[0], QuantumControl):
gate = QuantumControl([1] + gnt[0].onoff, gnt[0].qop)
gatesAndTargets.append((gate, [f"p{6 - j}"] + gnt[1], []))
else:
gate = QuantumControl([1], gnt[0])
gatesAndTargets.append((gate, [f"p{6 - j}"] + gnt[1], []))
gatesAndTargets.append((qft, ["p0", "p1", "p2", "p3", "p4", "p5", "p6"], []))
gatesAndTargets.append(
(Measure(7), [f"p{i}" for i in range(7)], [0, 1, 2, 3, 4, 5, 6])
)
seq2 = Sequence(
["p0", "p1", "p2", "p3", "p4", "p5", "p6"] + [f"{i}" for i in range(n)],
[*range(7)],
gatesAndTargets,
)
qaes.append(embedSequences(seq2))
qaes2 = []
for n in range(6, 14):
qft = InverseQFT(7)
seq = seq_cv2[n - 6][0]
pow = pows2[n - 6]
gatesAndTargets = []
for i in range(7):
gatesAndTargets.append((Hadamard(), [f"p{i}"], []))
gatesAndTargets.append((seq, [f"{i}" for i in range(n)], []))
for j in reversed(range(7)):
for gnt in pow[j].gatesAndTargets:
if isinstance(gnt[0], QuantumControl):
gate = QuantumControl([1] + gnt[0].onoff, gnt[0].qop)
gatesAndTargets.append((gate, [f"p{6 - j}"] + gnt[1], []))
else:
gate = QuantumControl([1], gnt[0])
gatesAndTargets.append((gate, [f"p{6 - j}"] + gnt[1], []))
gatesAndTargets.append((qft, ["p0", "p1", "p2", "p3", "p4", "p5", "p6"], []))
gatesAndTargets.append(
(Measure(7), [f"p{i}" for i in range(7)], [0, 1, 2, 3, 4, 5, 6])
)
seq2 = Sequence(
["p0", "p1", "p2", "p3", "p4", "p5", "p6"] + [f"{i}" for i in range(n)],
[*range(7)],
gatesAndTargets,
)
qaes2.append(embedSequences(seq2))
4.6.5. Benchmark Risk Models with Cupy*/Numpy statevector simulators and Qiskit AerSimulator#
*The Cupy benchmark is executed with the T4 GPU on Google Colab.
from geqo.simulators import statevectorSimulatorCuPy, simulatorStatevectorNumpy
from geqo.utils import cupyWarmup
from qiskit import transpile
from qiskit.qasm3 import loads
from qiskit_aer import AerSimulator
import cupy as cp
import time
import psutil
import os
process = psutil.Process(os.getpid())
cupyWarmup() # warm up the CUDA driver
qiskit_time = []
numpy_time = []
cupy_time = []
for n in range(2, 6):
cv = seq_cv[n - 2][1]
seq = qaes[n - 2]
# AerSimulator
s = simulatorStatevectorNumpy(7 + n, 7)
for c in cv:
s.setValue(c, cv[c])
s.prepareBackend([qft])
code = s.sequence_to_qasm3(seq)
qc = loads(code)
qc.save_probabilities(qubits=[*range(7)])
sim_aer = AerSimulator()
mem_before = process.memory_info().rss
qiskit_start = time.time()
qc_t = transpile(qc, sim_aer)
result = sim_aer.run(qc_t).result()
qiskit_end = time.time()
mem_after = process.memory_info().rss
mem_used = (mem_after - mem_before) / 1e6 # MB
print(
f"{n} risk items --- AerSimulator runtime: {qiskit_end - qiskit_start:.4f}s, "
f"AerSimulator RAM used: {mem_used:.2f} MB"
)
qiskit_time.append(qiskit_end - qiskit_start)
# Numpy simulator
sim_np = simulatorStatevectorNumpy(7 + n, 7)
for c in cv:
sim_np.setValue(c, cv[c])
sim_np.prepareBackend([qft])
mem_before = process.memory_info().rss
numpy_start = time.time()
sim_np.apply(seq, [*range(7 + n)], [*range(7)])
numpy_end = time.time()
mem_after = process.memory_info().rss
mem_used = (mem_after - mem_before) / 1e6
print(
f"{n} risk items --- NumPy runtime: {numpy_end - numpy_start:.4f}s, "
f"Numpy RAM used: {mem_used:.2f} MB"
)
numpy_time.append(numpy_end - numpy_start)
# Cupy simulator
sim_cp = statevectorSimulatorCuPy(7 + n, 7)
for c in cv:
sim_cp.setValue(c, cv[c])
sim_cp.prepareBackend([qft])
cp._default_memory_pool.free_all_blocks()
cupy_start = time.time()
sim_cp.apply(seq, [*range(7 + n)], [*range(7)])
cupy_end = time.time()
mem_allocated = cp.get_default_memory_pool().used_bytes()
mem_total = cp.cuda.Device(0).mem_info[1] # total GPU memory
mem_used_percent = mem_allocated / mem_total * 100
print(
f"{n} risk items --- cupy runtime: {cupy_end - cupy_start:.4f}s, "
f"Cupy GPU memory used: {mem_allocated / 1e6:.2f} MB ({mem_used_percent:.1f}%)"
)
cupy_time.append(cupy_end - cupy_start)
2 risk items --- AerSimulator runtime: 12.9060s, AerSimulator RAM used: 23.21 MB
2 risk items --- NumPy runtime: 9.9349s, Numpy RAM used: 0.13 MB
2 risk items --- cupy runtime: 7.6551s, Cupy GPU memory used: 0.01 MB (0.0%)
3 risk items --- AerSimulator runtime: 178.1314s, AerSimulator RAM used: 114.24 MB
3 risk items --- NumPy runtime: 27.2260s, Numpy RAM used: 0.00 MB
3 risk items --- cupy runtime: 4.4133s, Cupy GPU memory used: 0.02 MB (0.0%)
4 risk items --- AerSimulator runtime: 374.9958s, AerSimulator RAM used: 41.94 MB
4 risk items --- NumPy runtime: 65.6965s, Numpy RAM used: 0.00 MB
4 risk items --- cupy runtime: 4.8452s, Cupy GPU memory used: 0.04 MB (0.0%)
5 risk items --- AerSimulator runtime: 811.7222s, AerSimulator RAM used: 4.20 MB
5 risk items --- NumPy runtime: 184.5879s, Numpy RAM used: 0.13 MB
5 risk items --- cupy runtime: 4.2080s, Cupy GPU memory used: 0.07 MB (0.0%)

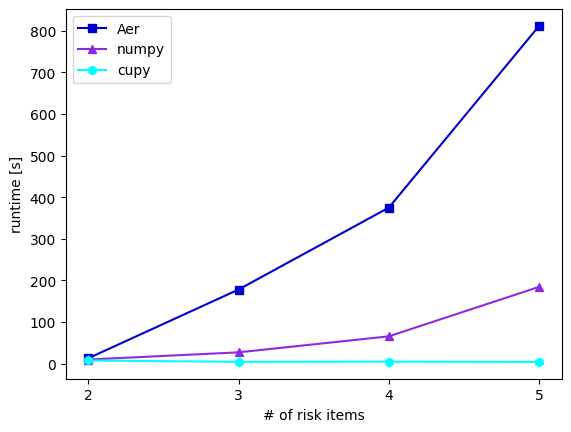

import matplotlib.pyplot as plt
plt.plot(range(2, 6), qiskit_time, label="Aer", marker="s", color="mediumblue")
plt.plot(range(2, 6), numpy_time, label="numpy", marker="^", color="blueviolet")
plt.plot(range(2, 6), cupy_time, label="cupy", marker="h", color="cyan")
plt.xlabel("# of risk items")
plt.xticks([2, 3, 4, 5])
plt.ylabel("runtime [s]")
plt.legend()
<matplotlib.legend.Legend at 0x7904a94a0e90>
cupy_time2 = []
for n in range(6, 14):
cv = seq_cv2[n - 6][1]
seq2 = qaes2[n - 6]
sim2 = statevectorSimulatorCuPy(7 + n, 7)
for c in cv:
sim2.setValue(c, cv[c])
sim2.prepareBackend([qft])
cp._default_memory_pool.free_all_blocks()
cupy_start = time.time()
sim2.apply(seq2, [*range(7 + n)], [*range(7)])
cupy_end = time.time()
mem_allocated = cp.get_default_memory_pool().used_bytes()
mem_total = cp.cuda.Device(0).mem_info[1]
mem_used_percent = mem_allocated / mem_total * 100
print(f"{n} risk items --- cupy runtime: {cupy_end - cupy_start}s")
print(f"GPU memory used: {mem_allocated / 1e6:.2f} MB ({mem_used_percent:.1f}%)")
cupy_time2.append(cupy_end - cupy_start)
6 risk items --- cupy runtime: 5.414300203323364s
GPU memory used: 0.21 MB (0.0%)
7 risk items --- cupy runtime: 7.646087408065796s
GPU memory used: 0.35 MB (0.0%)
8 risk items --- cupy runtime: 7.833507061004639s
GPU memory used: 0.61 MB (0.0%)
9 risk items --- cupy runtime: 11.382660865783691s
GPU memory used: 1.14 MB (0.0%)
10 risk items --- cupy runtime: 8.12359619140625s
GPU memory used: 2.18 MB (0.0%)
11 risk items --- cupy runtime: 18.57967519760132s
GPU memory used: 4.28 MB (0.0%)
12 risk items --- cupy runtime: 60.897520542144775s
GPU memory used: 8.48 MB (0.1%)
13 risk items --- cupy runtime: 190.85037183761597s
GPU memory used: 16.87 MB (0.1%)

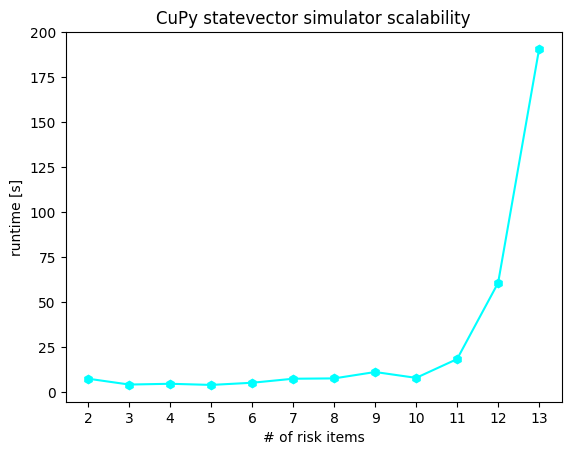

fig, ax = plt.subplots()
ax.plot(range(2, 14), cupy_time + cupy_time2, marker="h", color="cyan")
ax.set_xlabel("# of risk items")
ax.set_xticks([*range(2, 14)])
ax.set_ylabel("runtime [s]")
ax.set_title("CuPy statevector simulator scalability")
Text(0.5, 1.0, 'CuPy statevector simulator scalability')
